Bespoke Staircases


Prescott Staircase

At Stairplan aswell as our standard specification made to measure staircases we can also offer Bespoke high specification staircases,

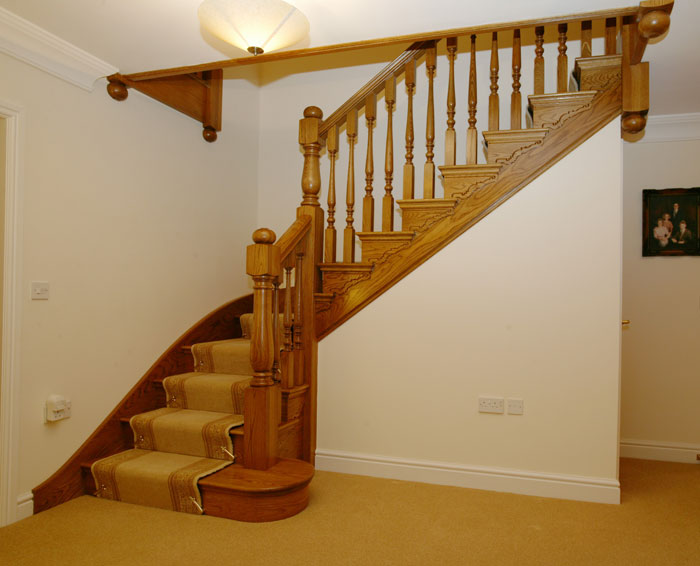

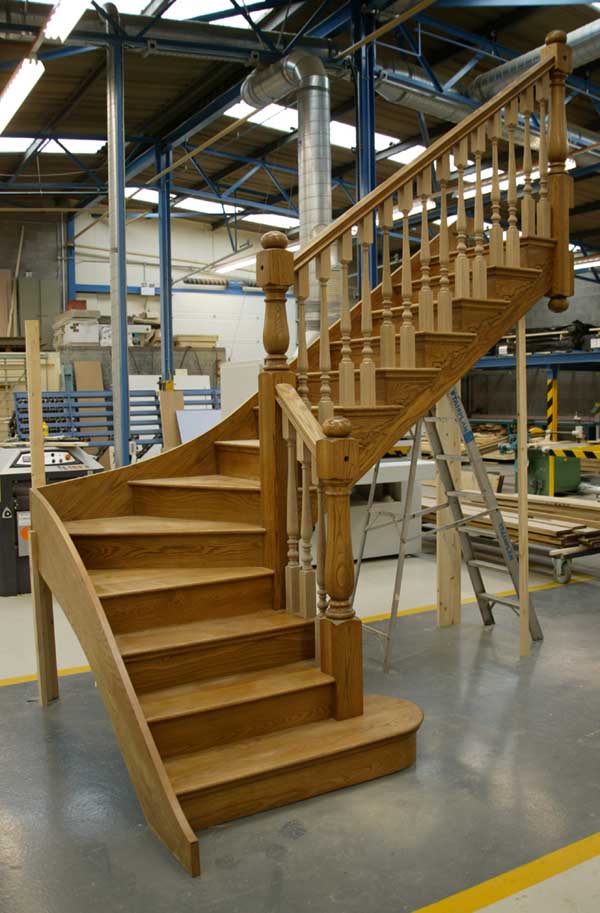

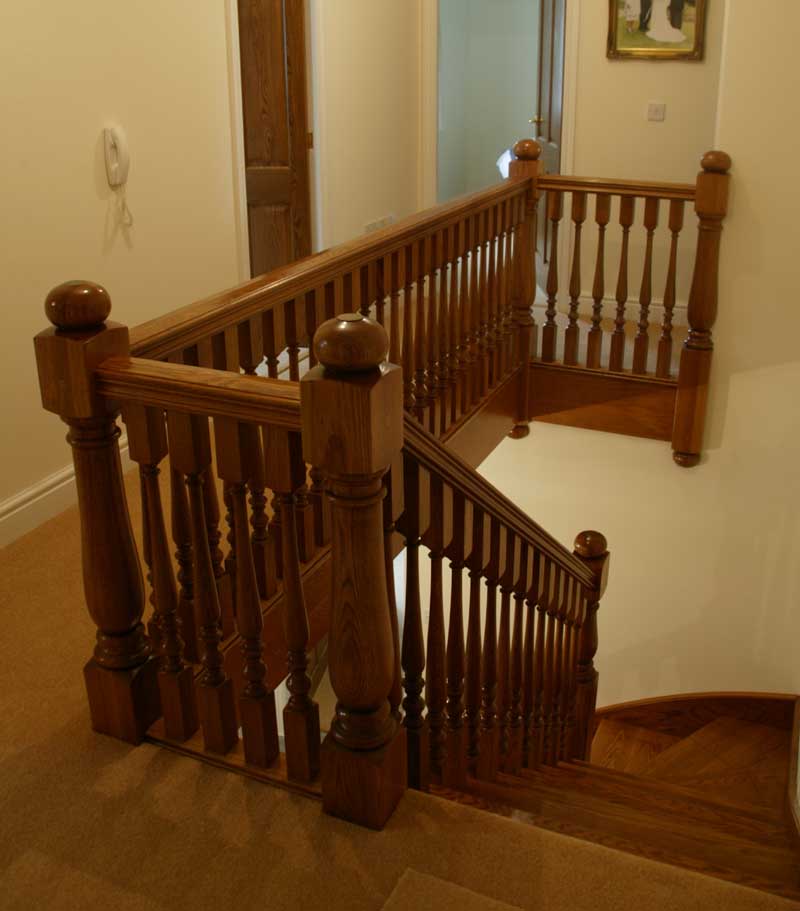

This Oak Cut string staircase has Bespoke 56mm spindles, Bespoke 140mm Newels and a Bespoke section handrail.

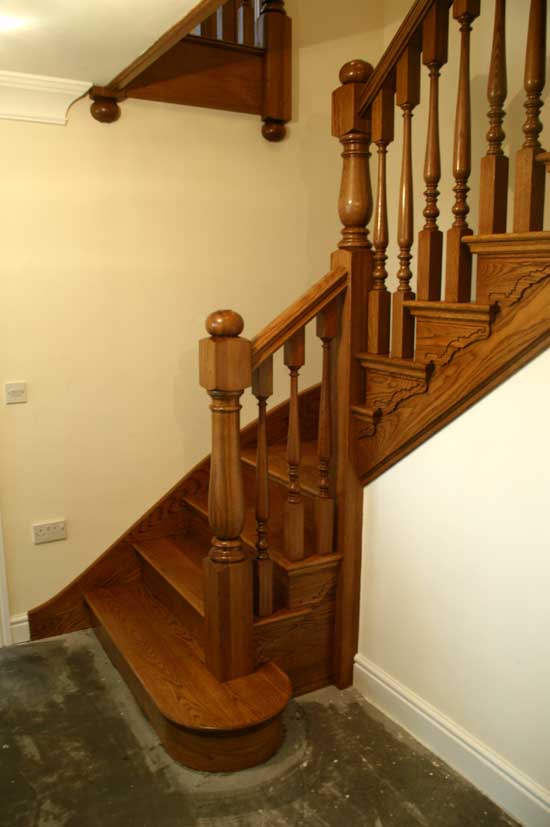

On this staircase we have also put some detailing into the Cut string bracket.

The Spindles have been specialy turned with 2 different turning lengths to follow the pitch of the staircase along the handrail line and stay level with the treads at the bottom.

This staircase has been made with a shallower pitch than the maximum 42 degree pitch, this one is around 38 degrees, it is far more comfortable to walk up than a standard staircase, if you are planning a self build project it may be an idea for your Architect to allow for this when laying out your stairwell, too many people try to squeeze staircases in to tight spaces and 42 degrees and not enough thought about the comfort of walking up the staircase.
